Hybrid inverter catalogue

Match the architecture
before the model.

Compare sixteen Solarunis hybrid-inverter configurations across phase, battery voltage, power and enclosure format. A Technical Data Sheet (TDS) is available for every configuration shown.

Range overview

Sixteen documented
configurations.

Screen-free and integrated-display formats share the same selection logic: phase, battery class and rated power.

16 TDS available

Solarunis Hybrid Inverter Series

Single-phase, three-phase and split-phase configurations for solar generation, compatible battery storage and backup applications.

  • Power coverage3–150 kW
  • Phase optionsSingle / three / split
  • Battery classLow Voltage / High Voltage
  • Documentation16 TDS
Compare configurations
InputPV array
ConversionHybrid inverter
SystemBattery + grid + loads

Configuration finder

Filter by system
architecture.

Choose phase, battery class, power and format. Results, comparison rows and enquiry context update together.

Format
Phase
Battery class
Power
16 configurations shownEnquire about the selection
Screen-freeHY-01

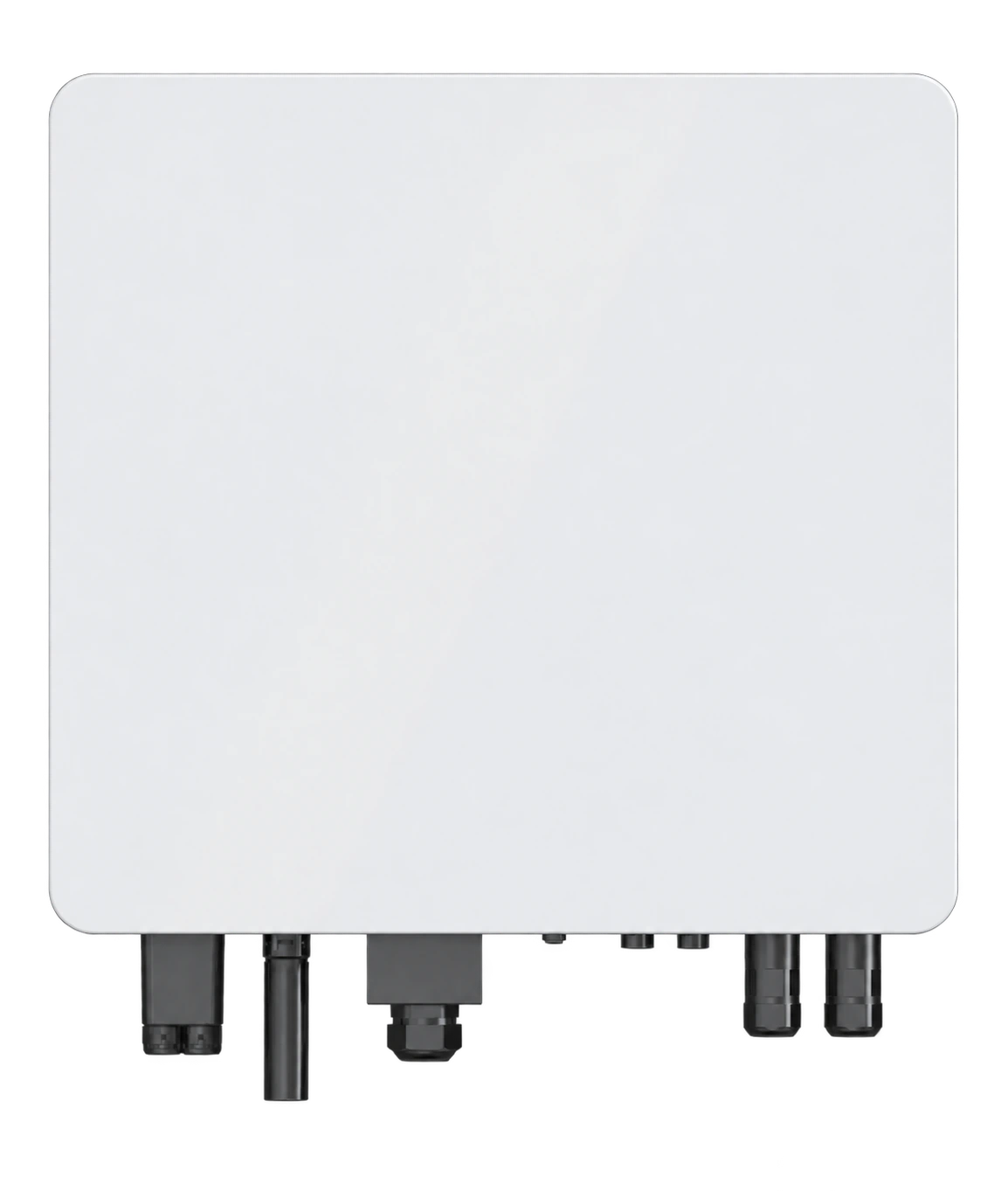

Solarunis single-phase Low Voltage Hybrid inverter, 3–6 kW, screen-free configuration

Single-phase hybrid inverter, 3–6 kW

Low Voltage battery platform

3 kW3.6 kW4 kW4.6 kW5 kW6 kW

3000S / 3600S / 4000S / 4600S / 5000S / 6000S

PV
2 MPPT · 80–500 V
Battery
42–58 V
Max. efficiency
Up to 98%
Enclosure
IP65 · 21 kg
Open TDSAsk about this configuration
Screen-freeHY-02

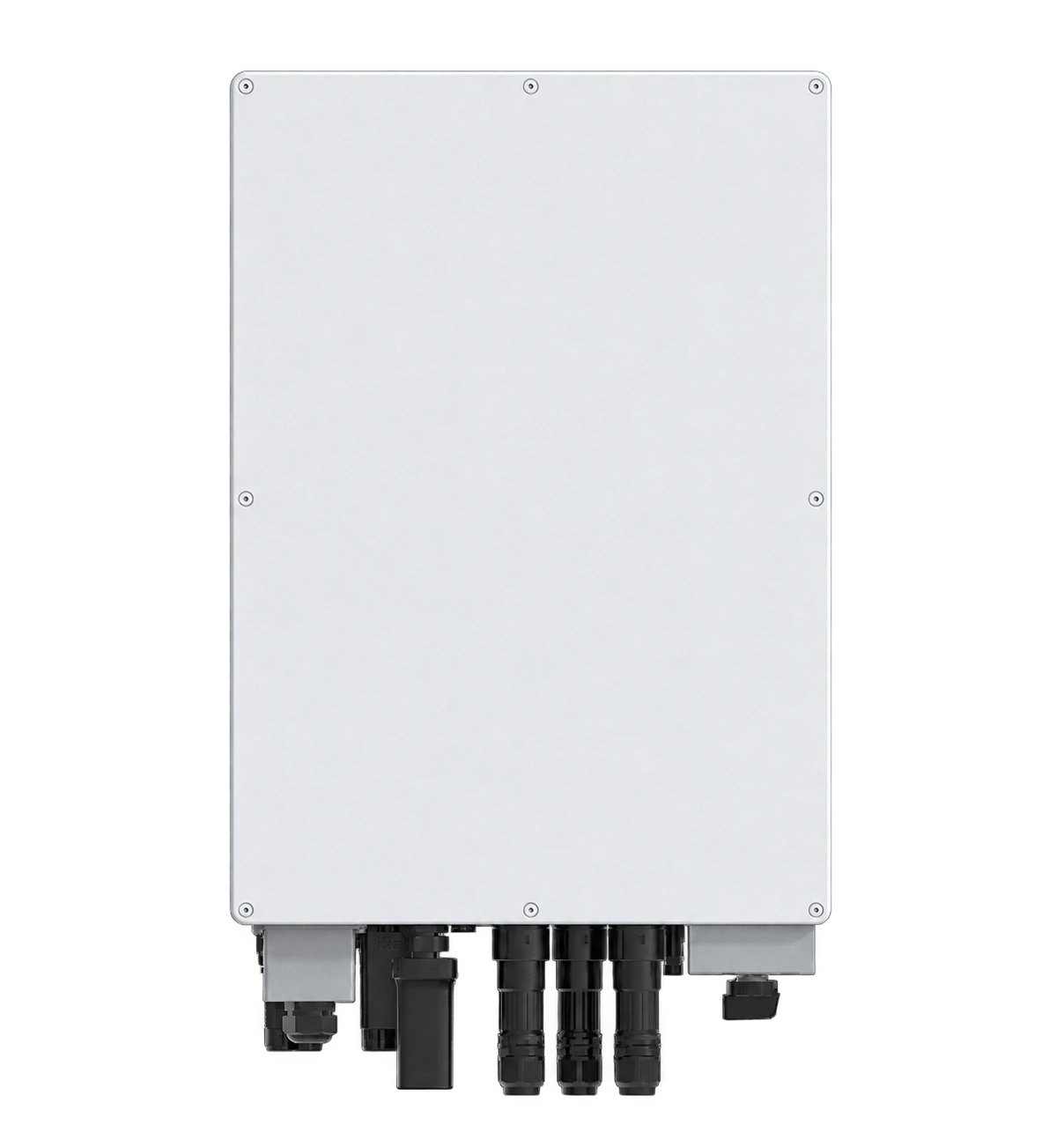

Solarunis single-phase Low Voltage Hybrid inverter, 5–12 kW, screen-free configuration

Single-phase hybrid inverter, 5–12 kW

Low Voltage battery platform

5 kW6 kW8 kW10 kW12 kW

D5K-SL / D6K-SL / D8K-SL / D10K-SL / D12K-SL

PV
3 MPPT · 130–800 V
Battery
30–60 V
Max. efficiency
Up to 98.2%
Enclosure
IP65 · 36 kg
Open TDSAsk about this configuration

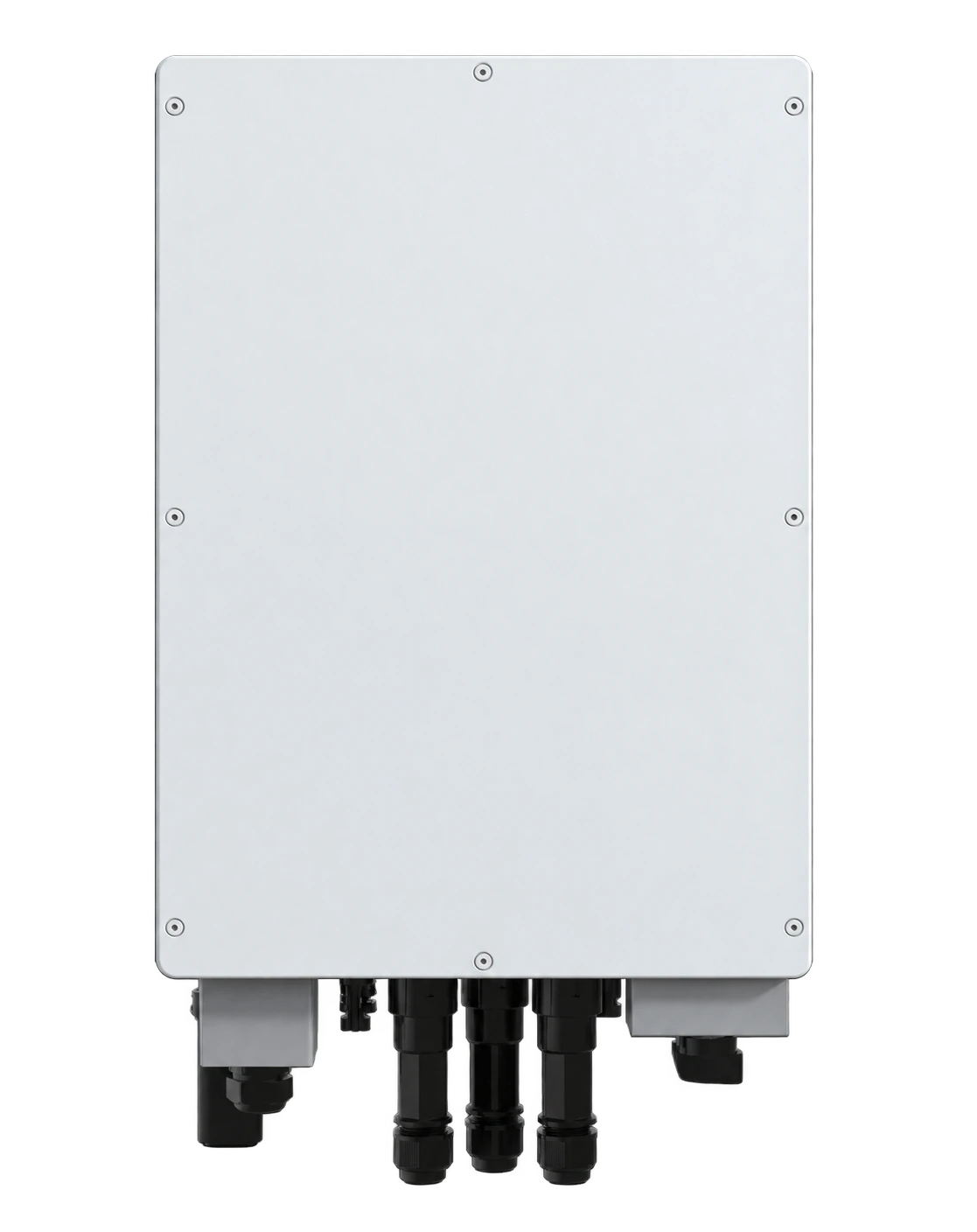

Screen-freeHY-03
Solarunis single-phase High Voltage Hybrid inverter, 5–12 kW, screen-free configuration

Single-phase hybrid inverter, 5–12 kW

High Voltage battery platform

5 kW6 kW8 kW10 kW12 kW

D5K-SH / D6K-SH / D8K-SH / D10K-SH / D12K-SH

PV
3 MPPT · 130–960 V
Battery
125–800 V
Max. efficiency
Up to 98.2%
Enclosure
IP65 · 26 kg
Open TDSAsk about this configuration
Screen-freeHY-04

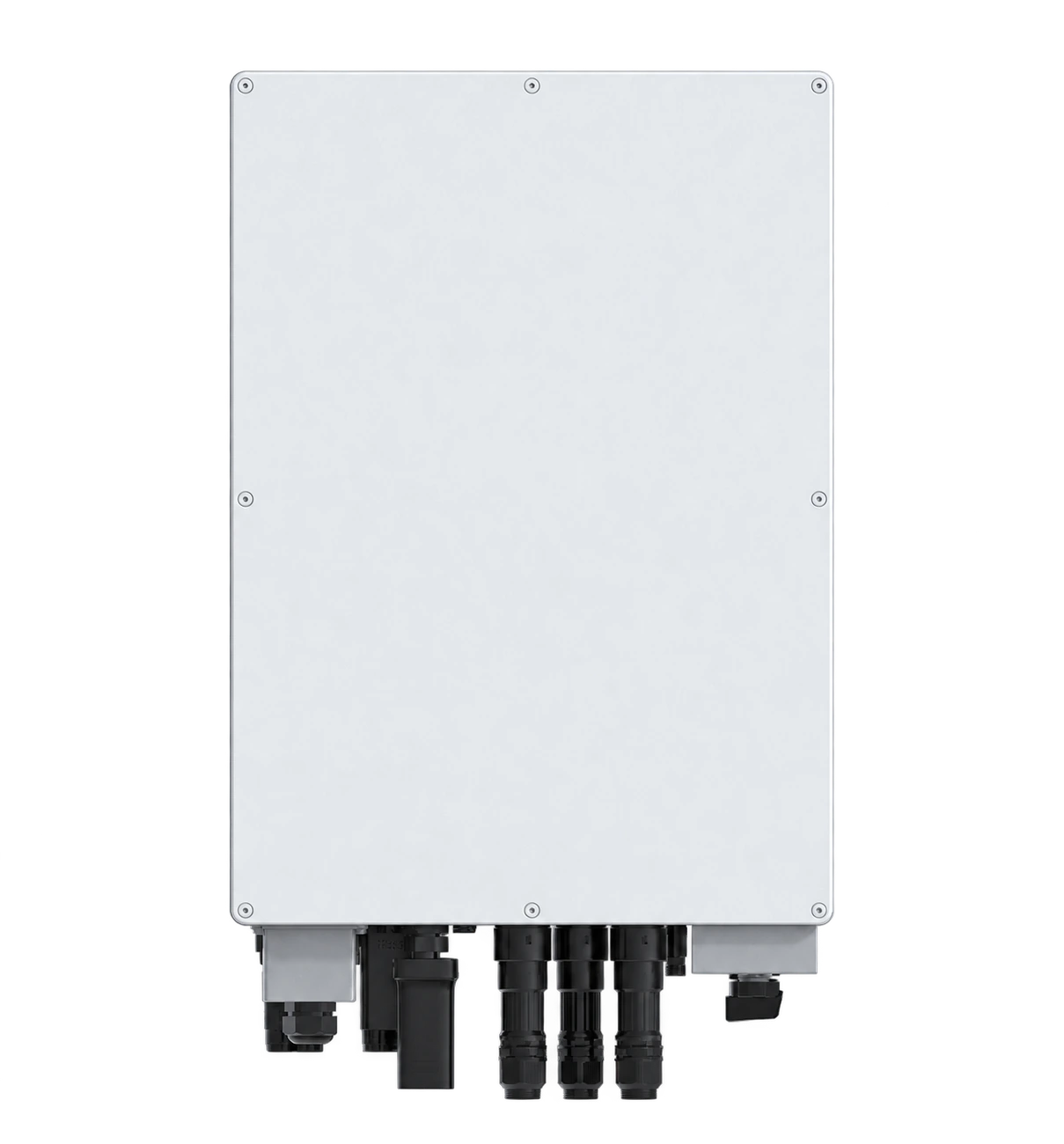

Solarunis three-phase Low Voltage Hybrid inverter, 5–12 kW, screen-free configuration

Three-phase hybrid inverter, 5–12 kW

Low Voltage battery platform

5 kW6 kW8 kW10 kW12 kW

D5K-TL / D6K-TL / D8K-TL / D10K-TL / D12K-TL

PV
3 MPPT · 130–800 V
Battery
30–60 V
Max. efficiency
Up to 98.2%
Enclosure
IP65 · 36 kg
Open TDSAsk about this configuration

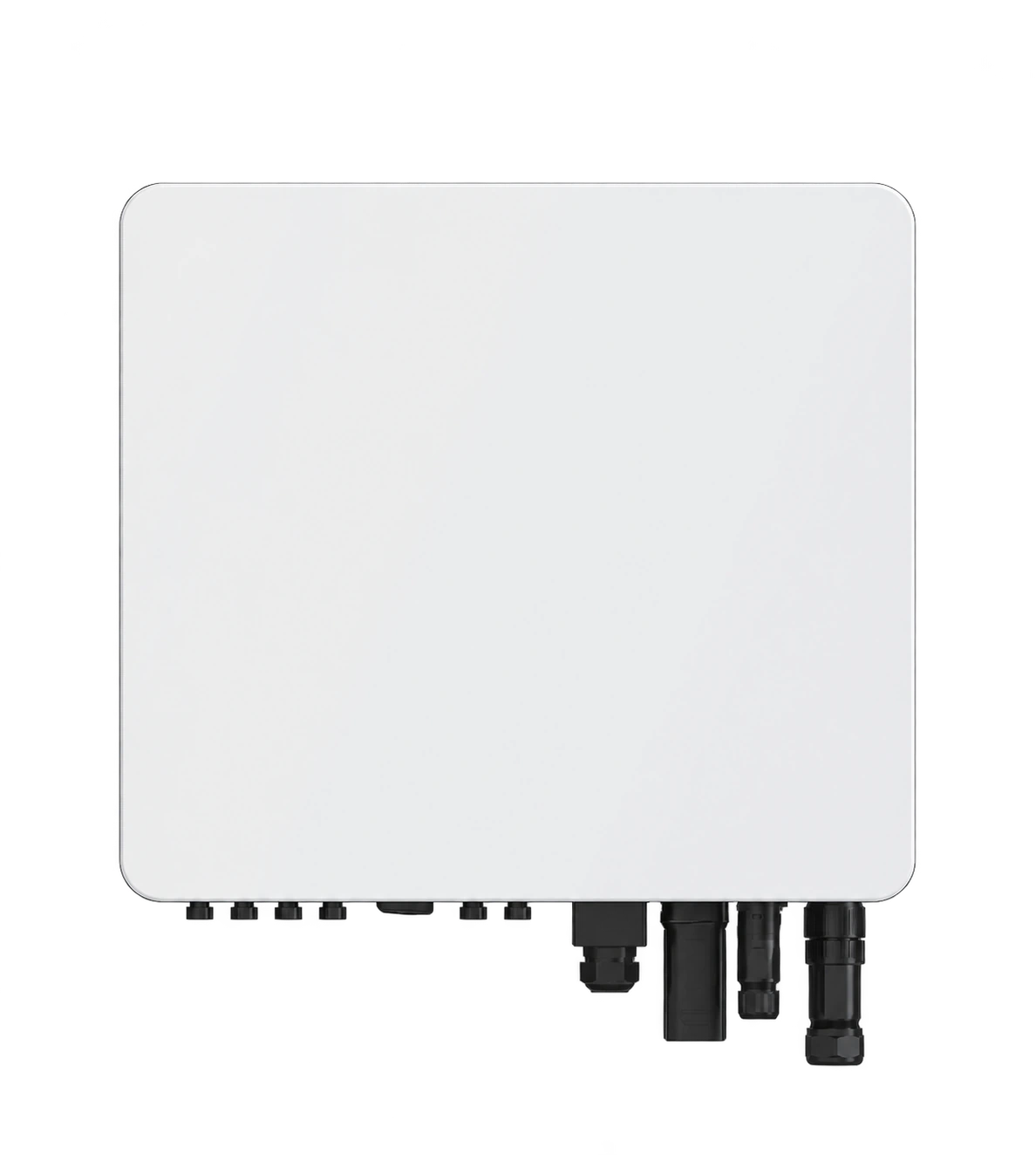

Screen-freeHY-05
Solarunis three-phase High Voltage Hybrid inverter, 5–20 kW, screen-free configuration

Three-phase hybrid inverter, 5–20 kW

High Voltage battery platform

5 kW6 kW8 kW10 kW12 kW15 kW18 kW20 kW

5000T / 6000T / 8000T / 10000T / 12000T / 15000T / 18000T / 20000T

PV
2 MPPT · 130–960 V
Battery
125–800 V
Max. efficiency
Up to 98.2%
Enclosure
IP65 · 35 kg
Open TDSAsk about this configuration

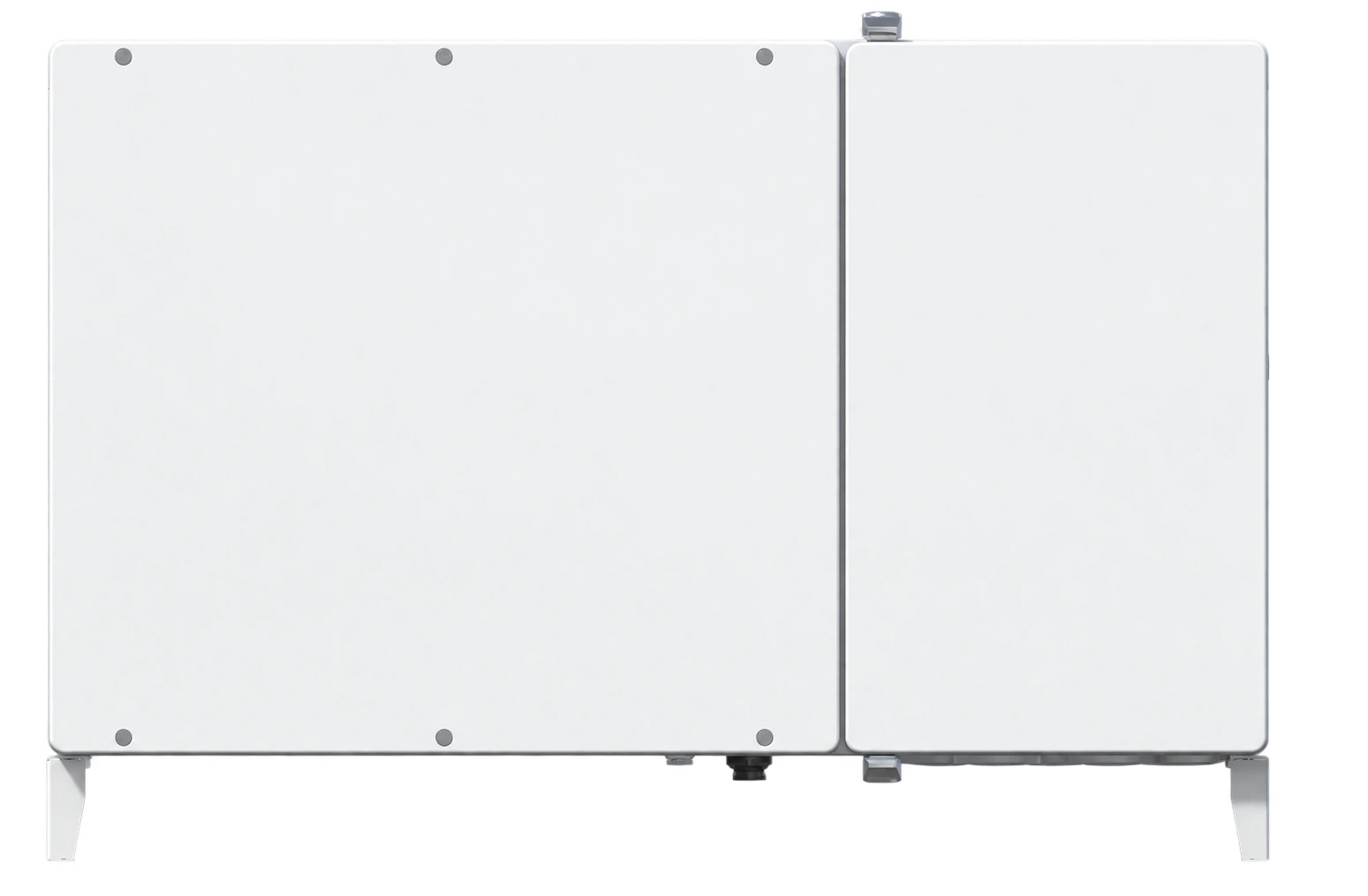

Screen-freeHY-06
Solarunis split-phase High Voltage Hybrid inverter, 5–20 kW, screen-free configuration

Split-phase hybrid inverter, 5–20 kW

High Voltage battery platform

5 kW6 kW8 kW10 kW12 kW15 kW20 kW

Confirm model identifiers with Solarunis

PV
4 MPPT · 80–500 V
Battery
80–480 V
Max. efficiency
Up to 97.6%
Enclosure
IP66 / NEMA 4X · 48 kg
Open TDSAsk about this configuration
Integrated displayHY-07

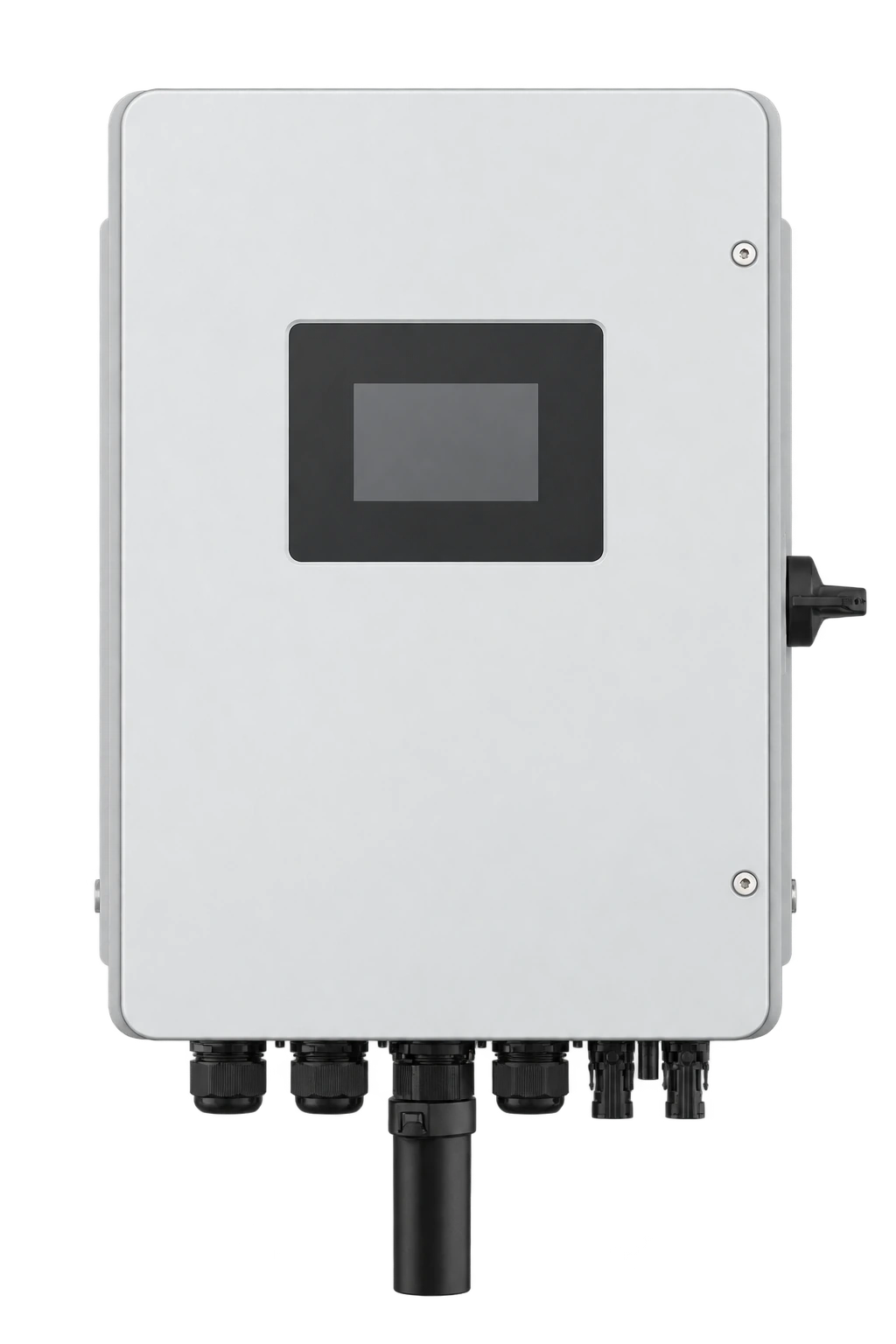

Solarunis single-phase Low Voltage Hybrid inverter, 3–6 kW, integrated display configuration

Single-phase hybrid inverter, 3–6 kW

Low Voltage battery platform

3 kW4 kW5 kW6 kW

S3K-SL-S / S4K-SL-S / S5K-SL-S / S6K-SL-S

PV
2 MPPT · 18 A per tracker
Battery
30–60 V
Max. efficiency
Up to 97.6%, by model
Enclosure
IP65 · 325 × 480 × 221.5 mm · 21 kg
Open TDSAsk about this configuration
Integrated displayHY-08

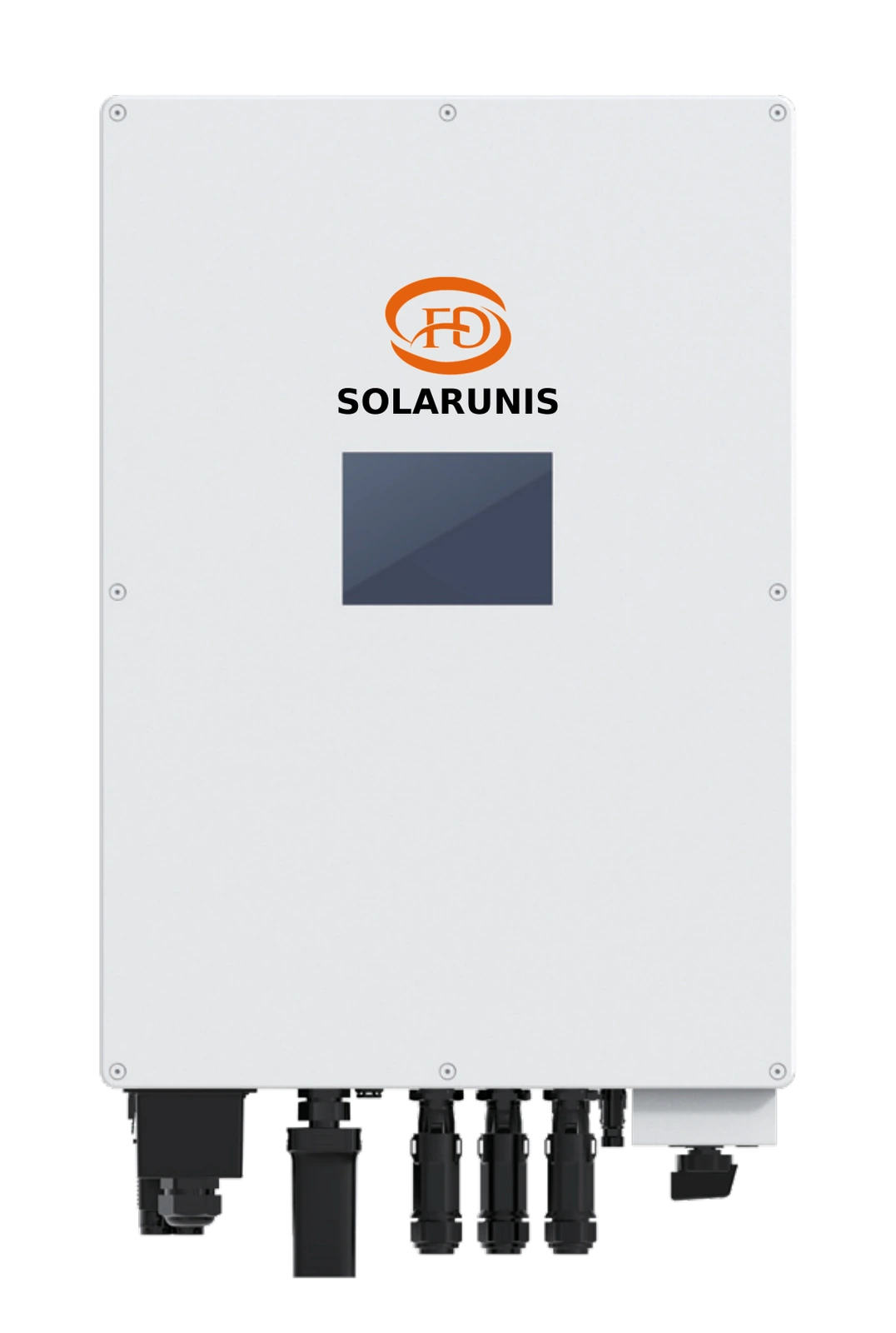

Solarunis single-phase Low Voltage Hybrid inverter, 5–12 kW, integrated display configuration

Single-phase hybrid inverter, 5–12 kW

Low Voltage battery platform

5 kW6 kW8 kW10 kW12 kW

D5K-SL-S / D6K-SL-S / D8K-SL-S / D10K-SL-S / D12K-SL-S

PV
3 MPPT · 20 A per tracker
Battery
30–60 V · 2 inputs
Max. efficiency
98.2% maximum
Enclosure
IP65 · 465 × 665 × 175 mm · 36 kg
Open TDSAsk about this configuration
Integrated displayHY-09
Solarunis single-phase Low Voltage Hybrid inverter, 8 kW, integrated display configuration

Single-phase hybrid inverter, 8 kW

Low Voltage battery platform

8 kW

E8K-SL-S

PV
2 MPPT · 18 A per tracker
Battery
30–60 V
Max. efficiency
97.6% maximum
Enclosure
IP65 · 380 × 480 × 211.3 mm · 23 kg
Open TDSAsk about this configuration

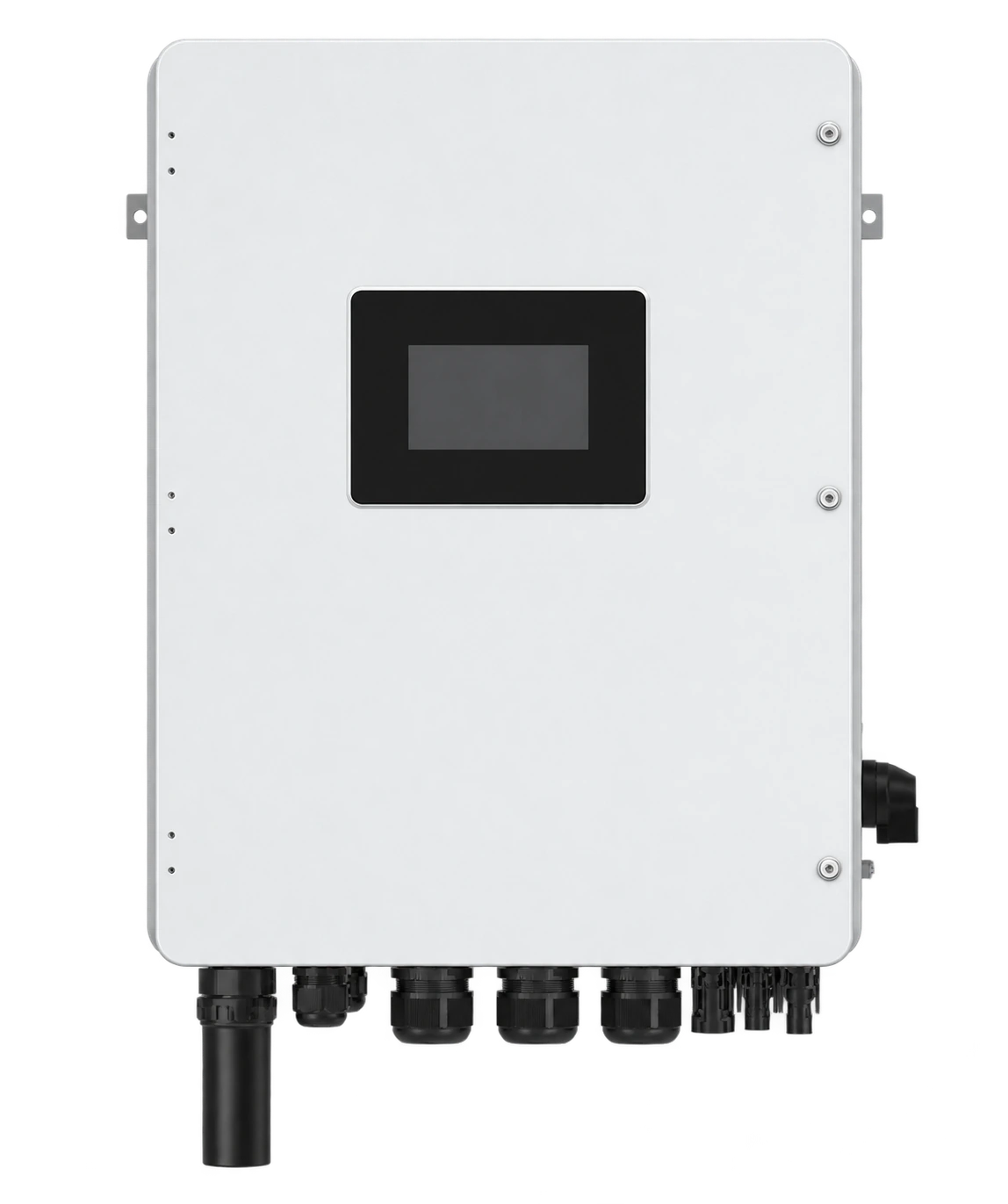

Integrated displayHY-10
Solarunis single-phase Low Voltage Hybrid inverter, 10–12 kW, integrated display configuration

Single-phase hybrid inverter, 10–12 kW

Low Voltage battery platform

10 kW12 kW

E10K-SL-S / E12K-SL-S

PV
2 MPPT · 36 A per tracker
Battery
30–60 V · 51.2 V rated
Max. efficiency
98.8% maximum
Enclosure
IP65 · 400 × 530 × 221 mm · 29.5 kg
Open TDSAsk about this configuration

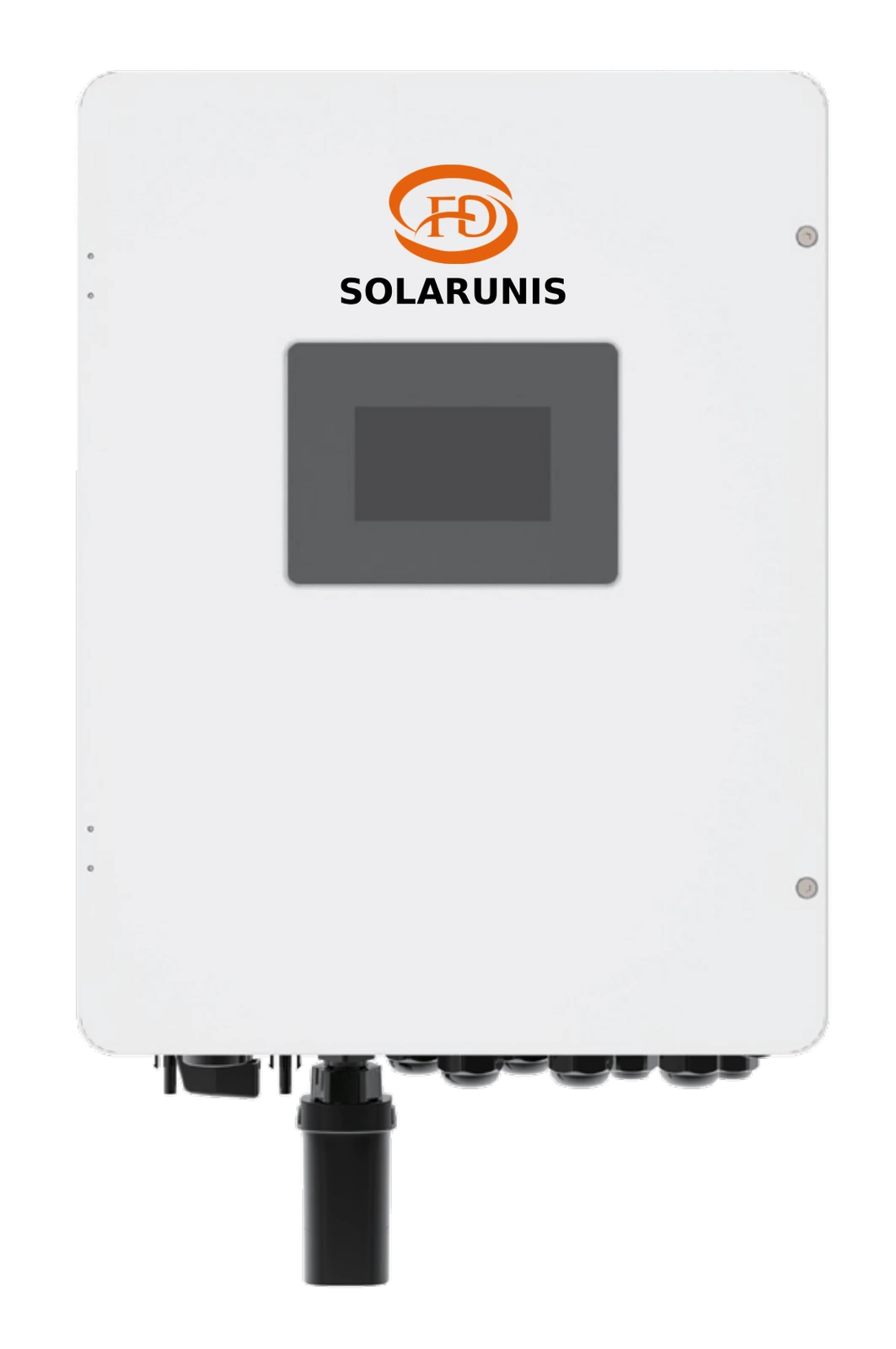

Integrated displayHY-11
Solarunis three-phase Low Voltage Hybrid inverter, 5–9 kW, integrated display configuration

Three-phase hybrid inverter, 5–9 kW

Low Voltage battery platform

5 kW6 kW8 kW9 kW

C5K-TL-S / C6K-TL-S / C8K-TL-S / C9K-TL-S

PV
2 MPPT · 20 A per tracker
Battery
30–60 V
Max. efficiency
97.8% maximum
Enclosure
IP65 · 380 × 500 × 180 mm · 25 kg
Open TDSAsk about this configuration
Integrated displayHY-12

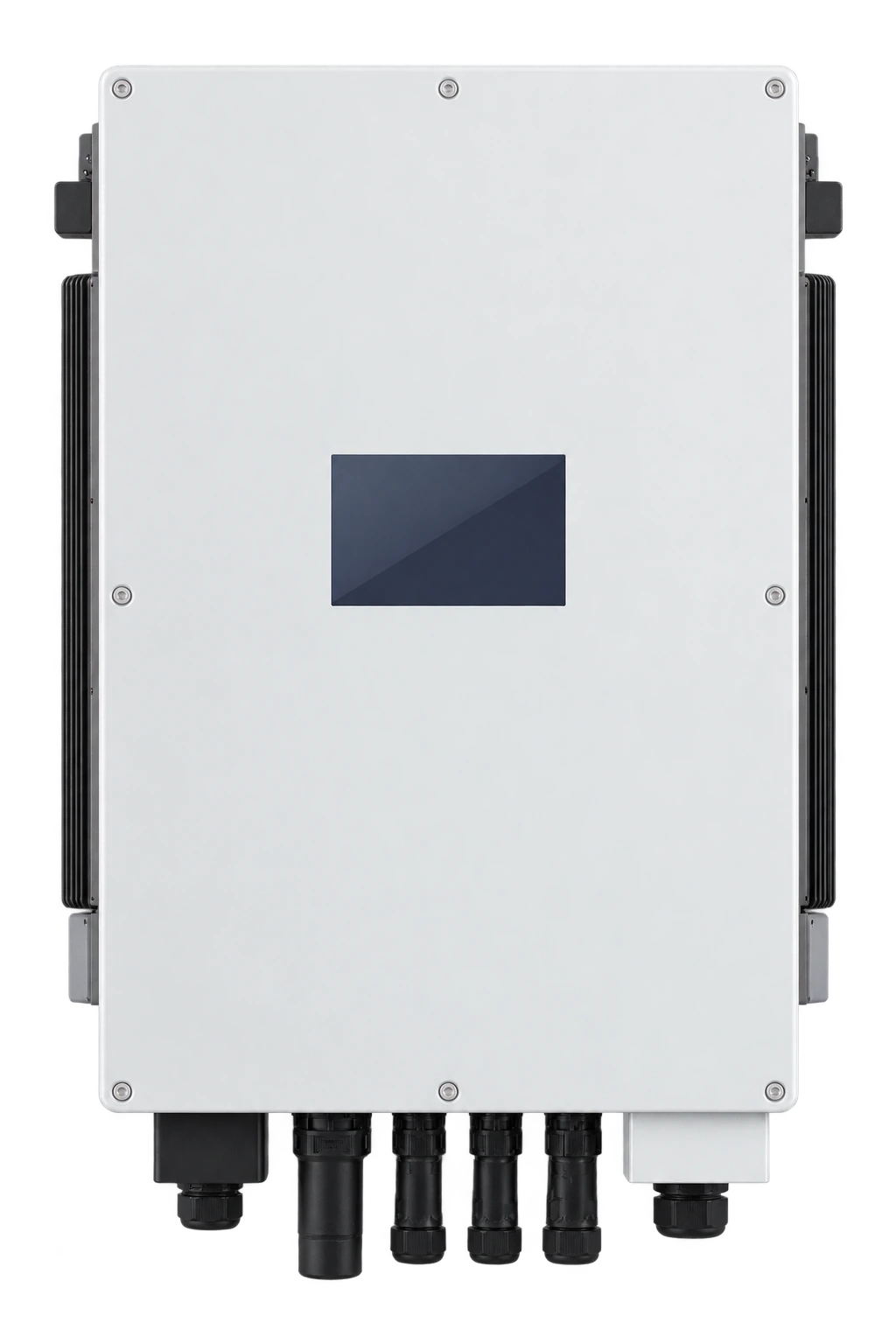

Solarunis three-phase Low Voltage Hybrid inverter, 5–12 kW, integrated display configuration

Three-phase hybrid inverter, 5–12 kW

Low Voltage battery platform

5 kW6 kW8 kW10 kW12 kW

D5K-TL-S / D6K-TL-S / D8K-TL-S / D10K-TL-S / D12K-TL-S

PV
3 MPPT · 20 A per tracker
Battery
30–60 V · 2 inputs
Max. efficiency
98.2% maximum
Enclosure
IP65 · 465 × 665 × 175 mm · 36 kg
Open TDSAsk about this configuration
Integrated displayHY-13

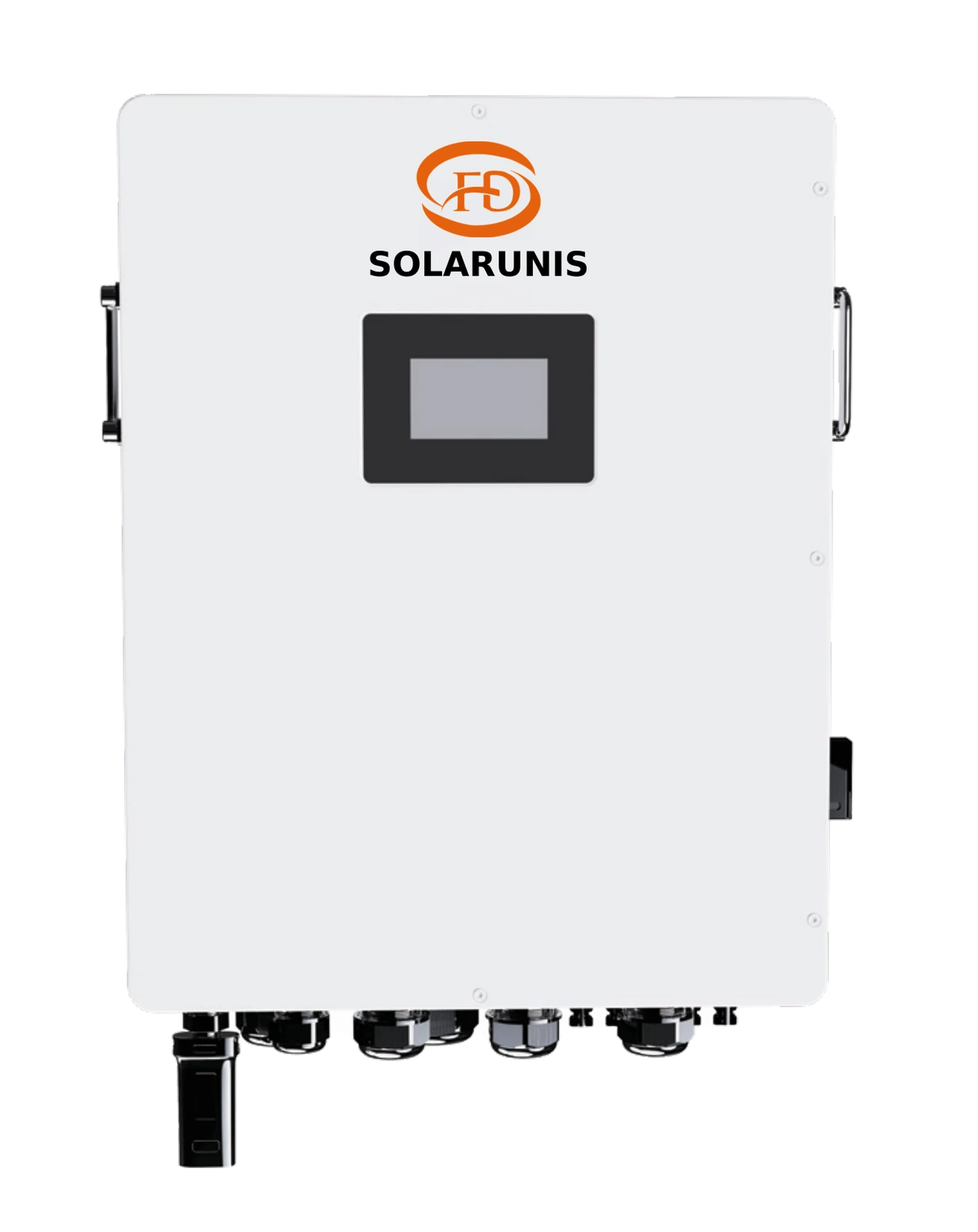

Solarunis three-phase Low Voltage Hybrid inverter, 15–30 kW, integrated display configuration

Three-phase hybrid inverter, 15–30 kW

Low Voltage battery platform

15 kW18 kW20 kW25 kW29.9 kW30 kW

W15K-TL-S / W18K-TL-S / W20K-TL-S / W25K-TL-S / W29.9K-TL-S / W30K-TL-S

PV
4 MPPT · 40/40/20/20 A input
Battery
30–60 V · 2 channels
MPPT efficiency
99.9%
Enclosure
IP65 · 515 × 665 × 270 mm · 55 kg · weight to be confirmed
Open TDSAsk about this configuration

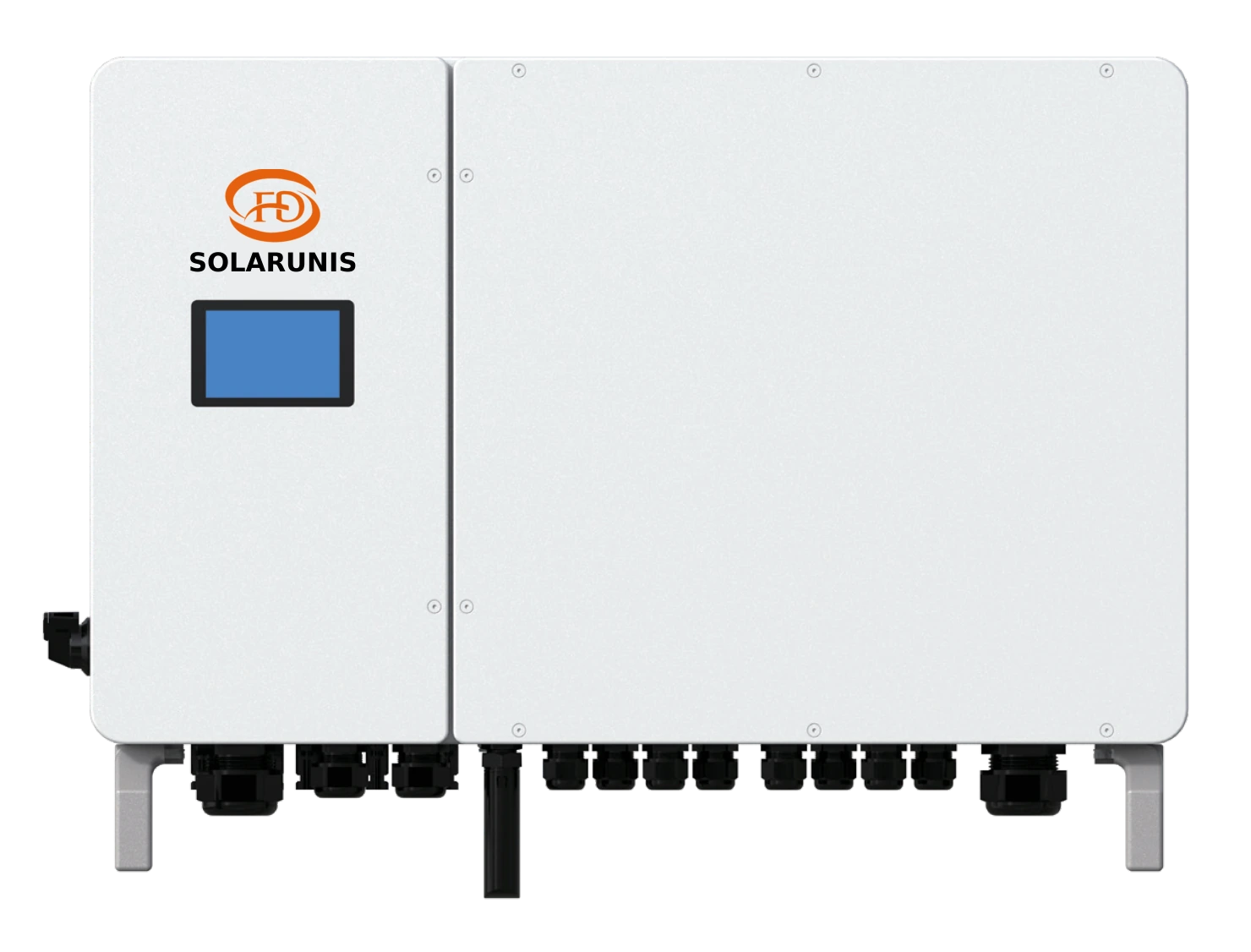

Integrated displayHY-14
Solarunis three-phase High Voltage Hybrid inverter, 22–50 kW, integrated display configuration

Three-phase hybrid inverter, 22–50 kW

High Voltage battery platform

22 kW25 kW29.9 kW30 kW40 kW42.5 kW50 kW

L22K-TH-S / L25K-TH-S / L29.9K-TH-S / L30K-TH-S / L40K-TH-S / L42.5K-TH-S / L50K-TH-S

PV
4 MPPT · 40 A per tracker
Battery
140–800 V · 2 inputs
Max. efficiency
98.6% maximum
Enclosure
IP66 · 850 × 550 × 295 mm · 88 kg
The HY-14 and HY-15 TDS documents cover overlapping models. Confirm the applicable TDS and configuration with Solarunis.
Open TDSAsk about this configuration

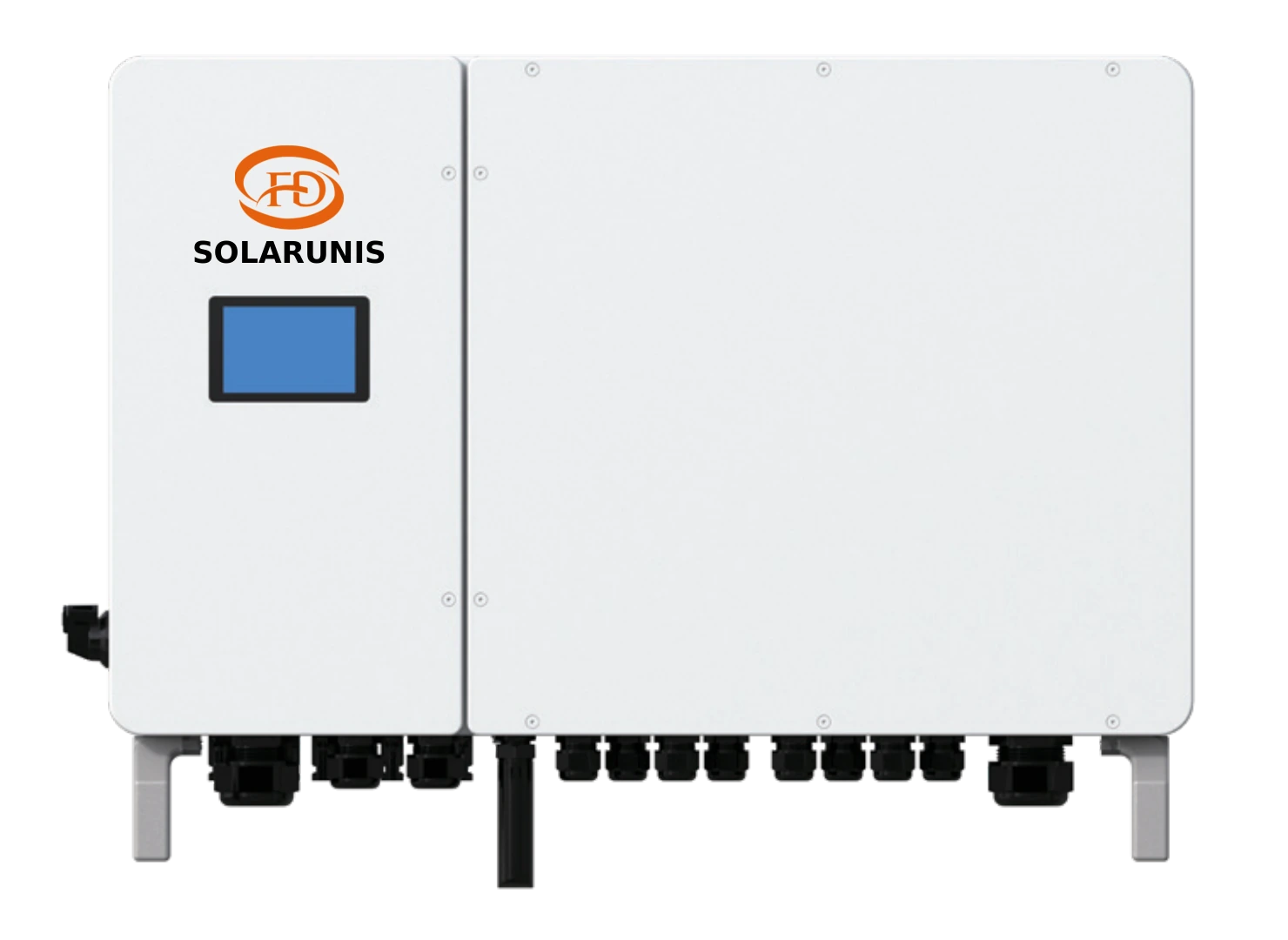

Integrated displayHY-15
Solarunis three-phase High Voltage Hybrid inverter, 25–60 kW, integrated display configuration

Three-phase hybrid inverter, 25–60 kW

High Voltage battery platform

25 kW29.9 kW30 kW40 kW42.5 kW50 kW60 kW

L25K-TH-S / L29.9K-TH-S / L30K-TH-S / L40K-TH-S / L42.5K-TH-S / L50K-TH-S / L60K-TH-S

PV
4 MPPT · 40 A per tracker
Battery
140–800 V · 2 inputs
Max. efficiency
98.6% maximum
Enclosure
IP66 · 850 × 550 × 295 mm · 88 kg
The HY-14 and HY-15 TDS documents cover overlapping models. Confirm the applicable TDS and configuration with Solarunis.
Open TDSAsk about this configuration

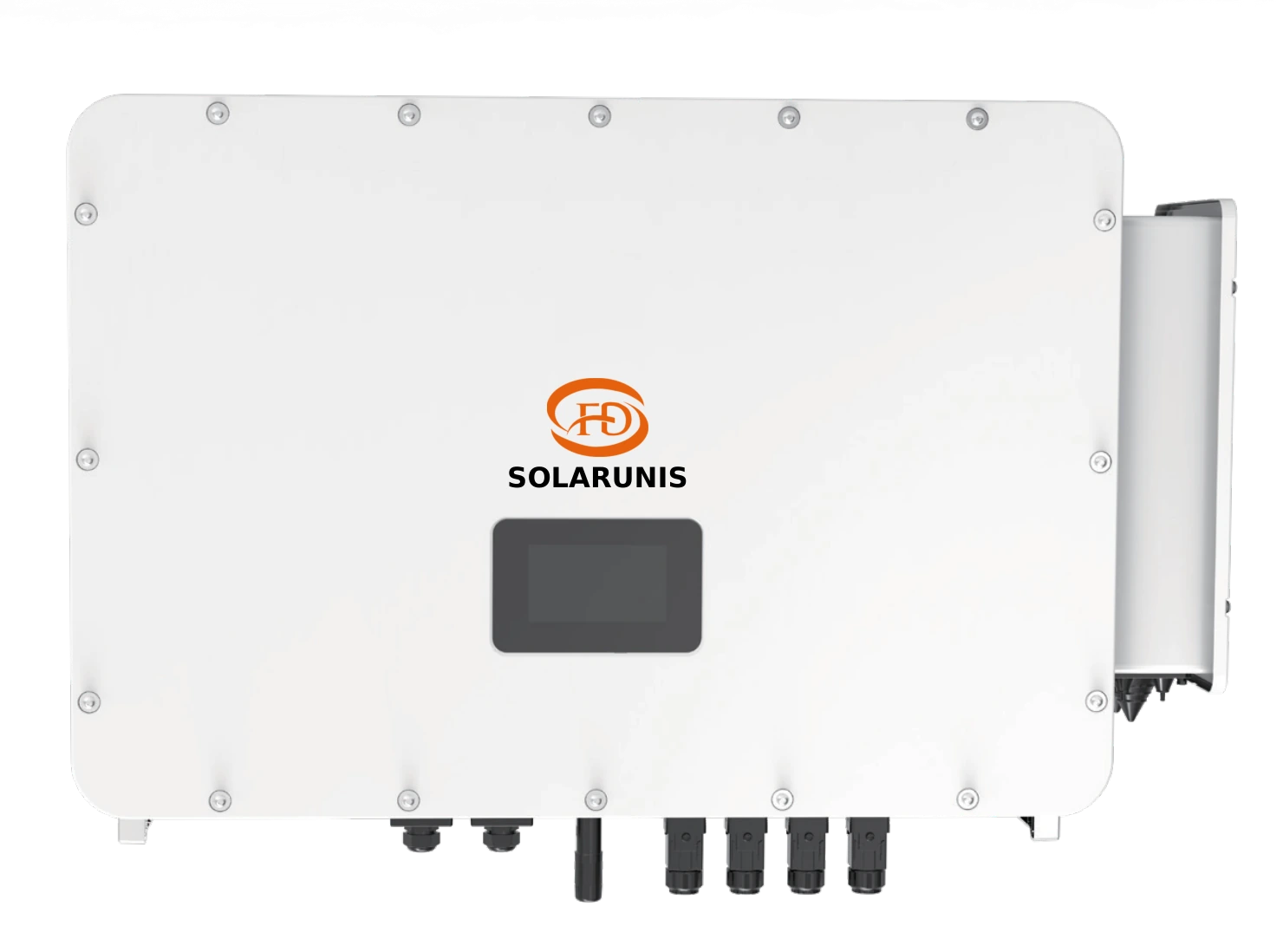

Integrated displayHY-16
Solarunis three-phase High Voltage Hybrid inverter, 75–150 kW, integrated display configuration

Three-phase hybrid inverter, 75–150 kW

High Voltage battery platform

75 kW100 kW125 kW150 kW

M75K-TH-S / M100K-TH-S / M125K-TH-S / M150K-TH-S

PV
10 MPPT · 48 A per tracker
Battery
500–950 V · 2 channels
Max. efficiency
98.8% maximum
Enclosure
IP66 · 1244 × 848 × 385 mm · 180 kg · weight to be confirmed
Open TDSAsk about this configuration
Compare the selected configurations in a table
Hybrid configurations matching the active filters
ConfigurationModelsPhaseBatteryPowerFormatTDS
HY-013000S / 3600S / 4000S / 4600S / 5000S / 6000SSingle-phaseLow Voltage3–6 kWScreen-freeOpen TDS
HY-02D5K-SL / D6K-SL / D8K-SL / D10K-SL / D12K-SLSingle-phaseLow Voltage5–12 kWScreen-freeOpen TDS
HY-03D5K-SH / D6K-SH / D8K-SH / D10K-SH / D12K-SHSingle-phaseHigh Voltage5–12 kWScreen-freeOpen TDS
HY-04D5K-TL / D6K-TL / D8K-TL / D10K-TL / D12K-TLThree-phaseLow Voltage5–12 kWScreen-freeOpen TDS
HY-055000T / 6000T / 8000T / 10000T / 12000T / 15000T / 18000T / 20000TThree-phaseHigh Voltage5–20 kWScreen-freeOpen TDS
HY-06Confirm model identifiers with SolarunisSplit-phaseHigh Voltage5–20 kWScreen-freeOpen TDS
HY-07S3K-SL-S / S4K-SL-S / S5K-SL-S / S6K-SL-SSingle-phaseLow Voltage3–6 kWIntegrated displayOpen TDS
HY-08D5K-SL-S / D6K-SL-S / D8K-SL-S / D10K-SL-S / D12K-SL-SSingle-phaseLow Voltage5–12 kWIntegrated displayOpen TDS
HY-09E8K-SL-SSingle-phaseLow Voltage8 kWIntegrated displayOpen TDS
HY-10E10K-SL-S / E12K-SL-SSingle-phaseLow Voltage10–12 kWIntegrated displayOpen TDS
HY-11C5K-TL-S / C6K-TL-S / C8K-TL-S / C9K-TL-SThree-phaseLow Voltage5–9 kWIntegrated displayOpen TDS
HY-12D5K-TL-S / D6K-TL-S / D8K-TL-S / D10K-TL-S / D12K-TL-SThree-phaseLow Voltage5–12 kWIntegrated displayOpen TDS
HY-13W15K-TL-S / W18K-TL-S / W20K-TL-S / W25K-TL-S / W29.9K-TL-S / W30K-TL-SThree-phaseLow Voltage15–30 kWIntegrated displayOpen TDS
HY-14L22K-TH-S / L25K-TH-S / L29.9K-TH-S / L30K-TH-S / L40K-TH-S / L42.5K-TH-S / L50K-TH-SThree-phaseHigh Voltage22–50 kWIntegrated displayOpen TDS
HY-15L25K-TH-S / L29.9K-TH-S / L30K-TH-S / L40K-TH-S / L42.5K-TH-S / L50K-TH-S / L60K-TH-SThree-phaseHigh Voltage25–60 kWIntegrated displayOpen TDS
HY-16M75K-TH-S / M100K-TH-S / M125K-TH-S / M150K-TH-SThree-phaseHigh Voltage75–150 kWIntegrated displayOpen TDS
